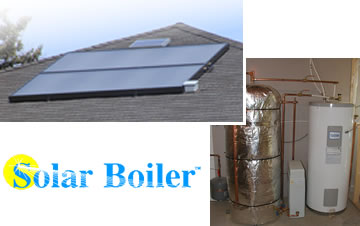

SOLAR BOILER™ - Solar Water Heater

Solar Domestic Water Heating System




File #243150

Official Energy Ratings for our Solar Boiler™ Systems

SB32-9PV (1 collector system) - 6.11 GJ/year

SB64-9PV (2 collector system) - 9.94 GJ/year



The SB32-9PV is the only 1 collector CSA certified system in Canada to qualify for the ecoENERGY retrofit grant

The SB64-9PV has the highest Energy Rating of all CSA certified systems in Canada


S Series Solar Collector - Model S32-P

SRCC OG-100 Certified

Certification # 100-2009007A



SRCC OG-300 Certified

SB32-9PV Certification # 3002009051A SEF 1.5

SB64-9PV Certification # 3002009051B SEF 2.3




Environmentally-Friendly Technology That Can Save You Money.

The Solar Boiler collects energy from the sun and converts it into hot water.

Domestic hot water is the second-highest energy cost in the typical household. In fact, for some homes it can be the highest energy expenditure. Solar water heating can now reduce your domestic water heating costs by as much as 65%.

The Thermo Dynamics' Solar Boiler is today's state-of-the-art solar water-heating appliance. Designed to pre-heat the domestic water that is supplied to your conventional water heater, it can result in remarkable savings. It's easy to install and maintenance free. The installation package contains all the necessary hardware and complete instructions. As a homeowner, you can install it yourself or have your local Thermo Dynamics dealer do it for you.

All parts of the system are built to demanding specifications, employing the latest solar technology for maximum performance. The Solar Boiler is manufactured from readily-available components, ensuring lower costs and reliability. The solar collectors are constructed of aluminum, copper, and tempered glass. The assembly incorporates the MICRO-FLO® absorber, a continuous tube with only two connections for effortless installation.


Your investment in clean and natural.

The Solar Boiler is environmentally-friendly. It does not pollute or use valuable non-renewable resources. Even the pump to transport heat from the collectors to the storage tank is powered by the sun. Solar energy is a sound investment in everyone's future, today.

The Solar Boiler is designed for automatic daily and year round operation. A non-toxic glycol solution in the solar collectors eliminates winter freezing problems. A photovoltaic module regulates the proper daily operation of the Solar Boiler and the solar loop circulator turns on only when the collectors are hot enough to heat the solar tank.

As one of Thermo Dynamics' new generation of solar products, the Solar Boiler makes solar energy economically available to your family's needs. It's an investment in reliable performance.
You have our name on it!


How it works:




Light from the sun strikes the solar collector and heats the black metal Sunstrip absorber underneath the glass cover. This heat is transferred to a non-toxic anti-freeze solution (propylene glycol and water) that is pumped through the collector and returns to the Solar Boiler.

The hot glycol then transfers heat to the water in the storage tank via the Solar Boiler 's heat exchanger. The water is heated repeatedly in this fashion, until the solar tank is hot.


The Solar Boiler is used as a domestic water pre-heater in conjunction with your conventional heating system. Cold water enters the Solar Boiler for initial heating, and is then delivered to the backup or conventional heating system for final heating as required. The conventional system is typically fueled by oil, electricity, propane, natural gas, etc....

Conventional energy requirements can be reduced substantially by using the Solar Boiler, and on many days the Solar Boiler will provide ample hot water without the backup (conventional) heater turning on. In most families, the Solar Boiler will displace up to 65% of the water heating requirements. A typical system for a family of four would include two solar collectors (6 square meters), 270 litres of solar water storage and a photovoltaic module to drive the glycol pump.


Sizing Your Solar Domestic Hot Water System

Family Size System Model Solar Collectors Collector Area Solar Boiler Module DHW Load Recommended Solar Storage Capacity*
1 - 2 people SB32-9PV 1 - S32B

2.97 m2
(32 ft2)

SBM-9DC <200 liters/day
(<44 IG/day)
(<53 USG/day)
270 liters
(60 IG)
(80 USG)
3 - 7 people SB64-9PV 1 - S32A
1 - S32B
5.82 m2
(64 ft2)
SBM-9DC >200 liters/day
(>44 IG/day)
(>53 USG/day)
270 liters
(60 IG)
(80 USG)

* Solar storage tanks are INCLUDED with the Solar Boiler™ System.




System Components



SB32-9PV Solar Boiler System - $4,474.oo CAD - OG300 Cert # 3002009051A

Quantity Model Description
1 S32B-P 4ft x 8ft Serpentine solar collector, "B", 2 connection ports + sensor well
1 SBM-9DC

Solar Boiler Module

- Solar Pump
- Expansion tank
- Glycol Resevoir [complete with 4 liters of glycol]
- Glycol inlet/outlet ports
- Water inlet/outlet ports

1 PV20 20 Wp photovoltaic module
1 K1050 Serpentine collector mounting kit [mounts flush to roof]
1 K1060 PV mounting kit
1 K2030-50

50 Copper tube kit [connects collector to Solar Boiler module, 50 ft distance between]

- 50 ft supply copper tube, 3/8" dia
- 50 ft return copper tube, 3/8" dia
- 50 ft 18/4 LVT wire
- 100 ft pipe insulation

1 GLYUSM 4 liter of Glycol for topping up the system
1 TG270SB Solar Boiler™ storage tank, 60 IG with connections



SB64-9PV Solar Boiler System - $5,522.oo CAD - OG300 Cert # 3002009051B

Quantity Model Description
1 S32A-P 4ft x 8ft Serpentine solar collector, "A", 4 connection ports
1 S32B-P 4ft x 8ft Serpentine solar collector, "B", 2 connection ports + sensor well
1 SBM-9DC

Solar Boiler Module

- Solar Pump
- Expansion tank
- Glycol Resevoir [complete with 4 liters of glycol]
- Glycol inlet/outlet ports
- Water inlet/outlet ports

1 PV20 20 Wp photovoltaic module
1 K1055 Serpentine collector mounting kit [mounts flush to roof]
1 K1060 PV mounting kit
1 K2030-50

50 Copper tube kit [connects collector to Solar Boiler module, 50 ft distance between]

- 50 ft supply copper tube, 3/8" dia
- 50 ft return copper tube, 3/8" dia
- 50 ft 18/4 LVT wire
- 100 ft pipe insulation

1 GLYUSM 4 liter of Glycol for topping up the system
1 TG270SB Solar Boiler™ storage tank, 60 IG with connections




Download graphical How the SOLAR BOILER Works pdf file
Comment le Solar Boiler travaille - français.

Technical Specifications:
Solar Boiler Technical Specifications
S Series Solar Collector

Technical SpecificationsTechnical Notes:
PRV Upgrade technical note
Heat Transfer Fluid technical note
Solar Pump technical note

Installation Manual:

Solar Boiler Installation Manual - Installation manual for SB32-9PV and SB64-9PV, with solar storage tank included. - CSA Certified System - ORANGE - UPDATED March 2012

Solar Boiler Installation Manual - Installation manual for SB32-9PV and SB64-9PV - CSA Certified System - UPDATED January 2012

Manuel d’Installation Solar Boiler - Manuel d’Installation pour Modèles
SB32-9PV et SB64-9PV - CSA - Juin 2009

SB32-9PV and SB64-9PV Installation Manual - UPDATED May 2009





Solar Boiler Bill of Materials, (BOM) - List of equipment supplied with the SB32-9PV and SB64-9PV Solar Boiler Systems






DOWNLOAD PRODUCT and TECHNICAL INFORMATION
For more product and technical information on Thermo Dynamics Ltd. Solar Products, visit our File Downloading Center
